Solid Metric Dowel Pins to DIN 6325
Code: DIN6325
Metric DIN 6325 Hardened Dowel Pins to DIN 6325 Dowel Pin Standard.

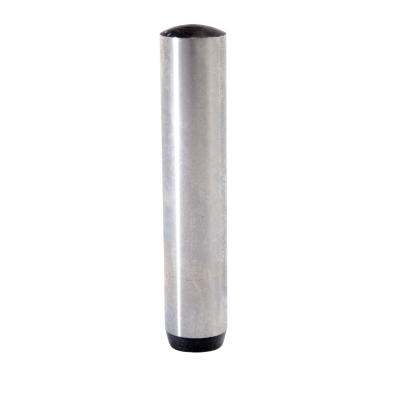

Boneham DIN 6325 Dowel Pins are through hardened to 60 +/-2 HRC and ground to m6 limits. The DIN 6325 dowels feature a dome and chamfer dome (radius) profile. DIN Standard dowels are available from 1mm to 20mm diameters and up to 120mm long.
Key Features
- Fully hardened and tempered 60+/- 2 HRC
- Fine ground to m6
- Turned tip and edge
- Can be alternative to ISO 8734A
- Similar to ISO 873B but through hardened and end profile difference
- Fully hardened and tempered 60+/- 2 HRC
- Fine ground to m6
- Turned tip and edge
- Transition fit for H7
| Material | Bearing Steel |
| Finish / Colour | Hardened & Ground Finish, Blackened Ends |
| Tailoring Options | Diameter, Length, Materials and to Customer Drawing or AS9100 Release |
| Manufacturing Standard | DIN 6325 |
| Metric or Imperial | Metric |
| Standard Size Range | 1.5mm - 16mm |
| Parent Item Code | DIN 6325 |
| Included | Solid metric dowel pin |
