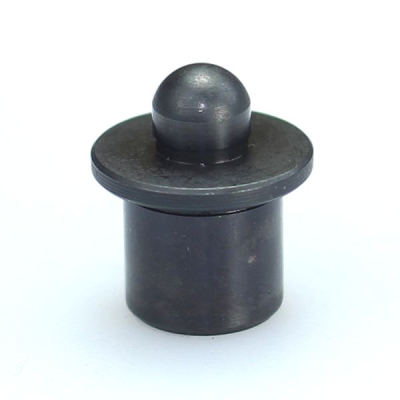

Round Bullet Nose Pin Imperial 1/4 to 1"
Code: BNR
What are Bullet Nose Pins - Round Type in Imperial (Inch)
Imperial Round Bullet Nose Pins are used with a mating liner bush to create an accurate alignment and locating system. The round pin creates accurate radial alignment with the liner. For simple installation, the OD of the pin body and the liner are the same, giving the option of one pass machining of both pates. The pins head and body are concentric to 0.0005 TIR. Sizes range from 1/4" to 1" with the liners available to suit.
Why choose Imperial Round Bullet Nose Pins for your application?
These location pins are very accurate and ideal for locating work-pieces in precision environments. The small round pin allows for easy locating over a short length of pin. It is recommended that diamond pins are also used to create a very accurate but rapid location and alignment process.
Key Features
- Precision Ground Locating System
- Hardened
- Black Oxide Finish
- Concentric to .0005" TIR
- Precision Ground Locating System
- Hardened
- Black Oxide Finish
- Concentric to .0005" TIR
- Inch Sizes
Material | Steel |
Finish / Colour | Hardened, Black Oxide |
Tailoring Options | Pin Diameter, Stainless Steel & Special to Drawing |
Manufacturing Standard | Boneham Standard |
Metric or Imperial | Available in both Metric (BNRM) & Imperial (BNR) |
Standard Size Range | ¼" to 1" Pin Dia |
Parent Item Code | BNR |
Included | Bullet Nose Pin (Liner Sold Separately) |
