Drilling accurate holes is one of the most important parts of manufacturing and engineering. An accurate hole with an exact diameter helps speed up work piece alignment and ensures the final product is high quality. To achieve the ultimate hole, just follow this (relatively) simple three step process. But before getting stuck into the three steps, you should take to drill the perfect hole, you should ensure you follow these standard procedures.

Initial considerations

Get the correct drill bits

• Ensure you have sharp and hard drill bits and reamers suited to your workpiece material to avoid putting too much pressure on the workpiece when cutting. Check out this useful drill bit finder from Performacut to get your drill bit selection perfected.

Secure your workpiece properly following the 3-2-1 principle

• Use location pins and clamps to keep your workpiece locked down during the hole cutting process. This prevents any wobbling or sliding that may occur and compromise the accuracy of the hole.

The three-step process for drilling

Step 1: Piloting

Piloting is used to create an accurately located entry point for fasteners or larger drill bits to enter the workpiece. By making a consistent surface, piloting prepares the workpiece for the drilling process by breaking the edge to reduce the chance of damage. Pilot drilling may use a standard twist drill or, when used specifically for accurate hole location, a short and stiff centre drill. Centre drills are chamfered to further prevent damage to the workpiece.

Step 2: Drilling

Drilling is the cutting of a hole with a circular cross-section in a solid material. Unlike piloting, drilling cuts a hole in the workpiece to the desired depth. A hole that is drilled has a slightly rough internal finish. This means that the concentricity of the internal diameter is not as high as it could be. So, there may be difficulty getting bushes and dowels to properly fit the hole.

As part of this three-step process, the drilled hole should be slightly smaller than the desired diameter. It’s common for the drill size to be reduced 2% - 4% from the desired hole diameter. This allows for the third and final step of the process to make a truly circular hole with an exact diameter.

Step 3: Reaming

Reaming is the process of slightly widening and professionally smoothing an existing hole to an exact diameter. It’s essential in metal working as it provides the precision needed for workpieces to be accurately located and aligned.

Reaming is faster and more stable than boring and grinding, making it a go to when efficiency and accuracy are key. Plus, it’s ideal for low volume repair operations where a rapid turnaround is required.

A common problem with the piloting, drilling, and reaming process

By nature, this process requires different sized drill bits and reamers. It can be tedious to move a workpiece across different jigs with the drill bushes to suit these different sizes.

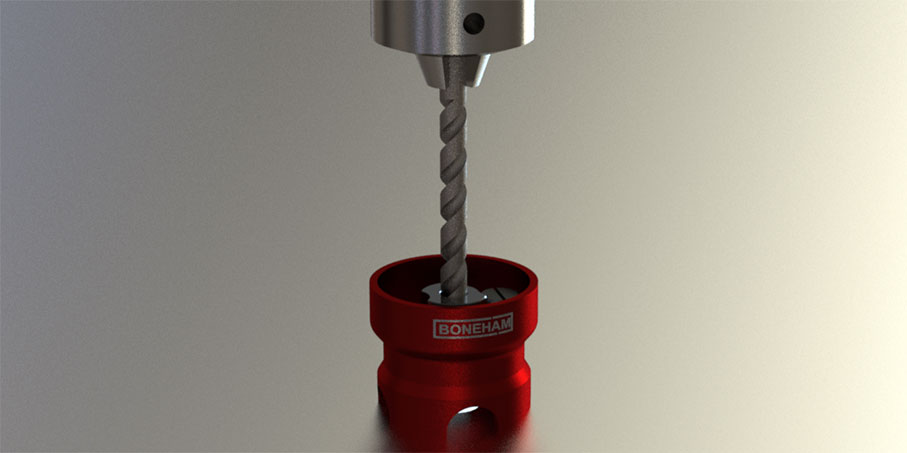

To navigate this, we created the egg cup bush, which makes a portable jig that allows swift switching of drill bushes for consistent 90° drilling.

Overview

Whilst piloting, drilling, and reaming are all different. They are often used in conjunction with one another to efficiently create accurate holes without damaging the workpiece. To recap, piloting breaks the edge of the workpiece, reducing the chance of damage; Drilling cuts a circular hole through the workpiece that 2% - 4% smaller than the desired internal diameter; and reaming slightly enlarges the ID to make a smooth and highly accurate hole.
