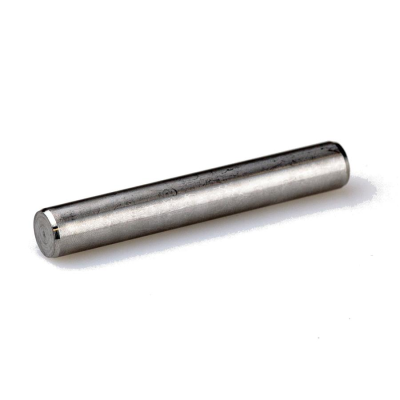

Metric Stainless Steel Dowel Pins ISO 2338A
Code: DP55
Metric ISO 2338A Stainless Steel.
These A2 Stainless Steel Dowel Pins are made from A2 / 304 stainless steel and in an unhardened state as 300 series stainless cannot be thermal hardened. A2 stainless steel dowel pins are non-magnetic and resistant corrosion and oxidation. A2 / 304 can tarnish and is also less suitable for marine applications than 316 stainless (please see our 316 stainless dowel pins for such applications).
For large quantities and contract orders of dowel pins please call our sales desk as discount and inventory solutions can be tailored to requirement. Boneham manufacture dowels to customer requirement from low to high volumes and to varying standards. Dowels can be manufactured and released in accordance with our AS9100D approval.
Key Features
- Precision stainless dowel pins for location and alignment
- A2 / 304 stainless steel in soft condition
- Diameter is to an m6 limit
- Chamfered on both ends
- Precision stainless dowel pins for location and alignment
- A2 / 304 stainless steel in soft condition
- Diameter is to an m6 limit
- Chamfered on both ends
- Min 0.8Ra finish
- 1mm to 16mm diameters
| Material | A2 / 304 Stainless Steel |
| Finish / Colour | Natural |
| Tailoring Options | Length, Diameter or Special to Drawing |
| Manufacturing Standard | ISO 2338A |
| Metric or Imperial | Metric |
| Standard Size Range | 1mm - 16mm |
| Parent Item Code | DP55 |
| Included | Dowel pin |
| Pin Diameter Range | Tolerance (m6) |
| 1mm to 3mm | +0.002 / +0.009mm |
| 3mm to 6mm | +0.004 / +0.012mm |
| 6mm to 10mm | +0.006 / +0.015mm |
| 10mm to 16mm | +0.007 / +0.018mm |
