GS15 3/4 Long Serrated Drill Bush 8mm (5/16) to 10.5mm (13/32) Bore Options

Code: GS15

GS15 3/4 Long Serrated Drill Bush 8mm (5/16) to 10.5mm (13/32) Bore Options

GS15 3/4 Long Serrated Drill Bush 8mm (5/16) to 10.5mm (13/32) Bores.

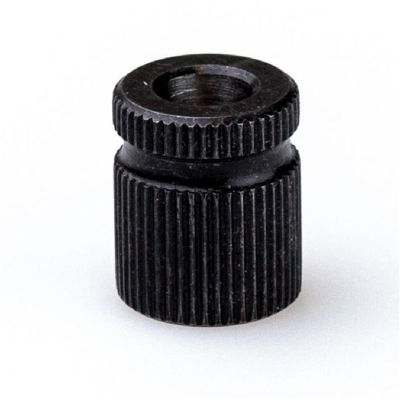

GS15 Serrated Jig Bushes feature an outside diameter of 5/8" and are 3/4" long. They are available in metric and imperial bores. These inside diameters range from 8mm (5/16) to 10.5mm (13/32) and ground to suit drills dowels and location pins.

Why choose GS15 Serrated Jig Bushes for your application?

GS bushes are ideal for setting in castable materials such as fiberglass composites resins and other moulded plastics. The vertical serrations prevent rotational movement and the radial groove allows resin to lock the bush into place. These two features mean the bush has significantly high resistance to axial force. The GS15 covers bore sizes for drills or pins from 8mm to 10.5mm in metric and imperial. The GS15 Bush is the mid-length standard at 3/4" long.

Key Features

  • Vertical Serrations
  • 8mm (5/16) to 10.5mm (13/32) bores
  • ¾" Long
  • Hardened and Ground

  • Vertical Serrations
  • Radial Groove
  • 8mm (5/16) to 10.5mm (13/32) bores
  • ¾" Long
  • Hardened and Ground

MaterialSteel
Finish / ColourHardened and Ground / Black
Tailoring OptionsBore and Length
Manufacturing StandardBoneham Standard
Metric or ImperialAvailable in both
Standard Size Range8mm (5/16) to 10.5mm (13/32)
Parent Item CodeGS15
IncludedSerrated Drill Bush
