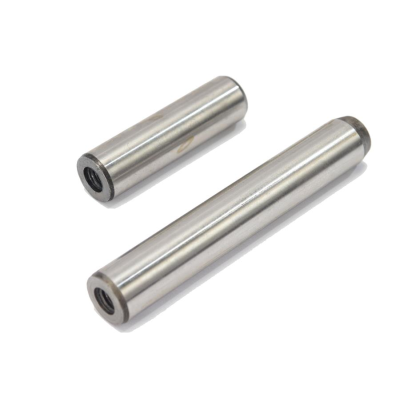

Extractable Metric Dowel Pins to ISO 8735 B
Code: DP35B
Metric BS 8735 | ISO 8735 Type B Extractable Dowel Pins.
ISO 8735 Extractable Dowels are designed with removal in mind. Where dowel pins are required for blind hole applications and removal is necessary ISO 8735 Extractable Dowel Pins can be removed easily. Boneham’s manufacture a dowel pin extractor tool available on the site to suit ISO 8735 dowel pins. Manufactured to BS 8735 / ISO 8735 Type B (Type A manufactured on request).
With double chamfers and blacked ends. Boneham’s manufacture 6mm and 8mm extractable dowel pins with smaller internal threads than the British Standard. This has been done for decades to prevent cracking during some applications by increasing the wall thickness.
Key Features
- Parallel pin with internal thread hardened in accordance with ISO 8735 ‘Type B’
- Ground to m6 limits
- Case hardened steel - internally threaded (tapped) with chamfer
- A dowel pin extraction tool is available
- Broad range from 6mm to 25mm
- Parallel pin with internal thread, hardened in accordance with ISO 8735 ‘Type B’
- Ground to m6 limits
- Case hardened steel - internally threaded (tapped) with chamfer
- A dowel pin extraction tool is available on the site
- Broad range from 6mm to 50mm
| Material | Mild Steel |
| Finish / Colour | Case Hardened & Ground, Blackened Ends |
| Tailoring Options | Diameter, Length, Material and to Customer Drawing |
| Manufacturing Standard | BS 8735 / ISO 8735 Type B |
| Metric or Imperial | Metric |
| Standard Size Range | 5mm - 25mm |
| Parent Item Code | DP35B |
| Included | Tapped metric dowel pin |
