Drill ID Size Range 0.6299 - 0.7500 P9
Code: P9
P9 Drill Size Range 0.6299 - 0.7500.

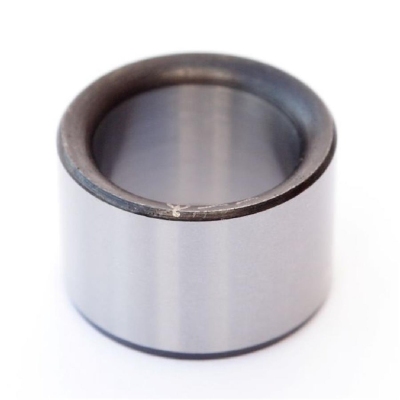

P Type Imperial Jig Bush BS1098 Pt.1 1967 are Plain Imperial Drill Bushes or Jig Bushes used in jigs and tools. P9 drill bushes have a nominal OD of 1”and bore size range of 0.6299 - 0.7500. Accurate and concentric imperial plain drill bushes can be used for locating imperial pins or for repetitive accurate drilling.
Headless bushes are manufactured with a ground OD to be pressed into a drilled or reamed plate. The drill bush sits flush with the fixture. Imperial bushes are also supplied in some cases with metric bores. Bushes can be manufactured to customer drawing or size requirements.
Key Features
- Drill bush bore size range 0.6299 - 0.7500"
- 1" OD drill bush to suit H6 hole
- Hardened and ground 60-62 RC
- Drill bush bore size range 0.6299 - 0.7500"
- 1" OD drill bush to suit H6 hole
- Hardened and ground 60-62 RC
- F7 ground ID
- Radius for easy drill / location pin entry
- Lead chamfer for easy drill bush location
| Material | Steel |
| Finish / Colour | Hardened / Ground Finish with Blackened Ends |
| Tailoring Options | Bore Size, Reamer Limits, Length or to Customer Drawing |
| Manufacturing Standard | BS 1098 PT. 1 1967 |
| Metric or Imperial | Imperial (Some Metric Bores Available) |
| Standard Size Range | 0.6299 - 0.7500" |
| Parent Item Code | P9 |
| Included | Headless Drill Bush |
