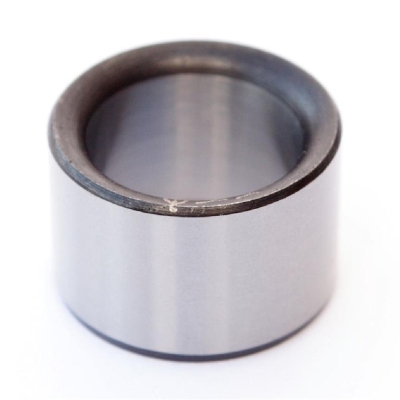

PP85 85mm OD with Drill Size Range 64mm - 70mm
Item No.
PP85
PP85 85mm Outside Diameter with Drill Size Range 64mm - 70mm Large Plain Drill Bushes with a 85mm outside diameter and a bore range of 64mm to 70mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are
Read full description
- Drill Size Range 64mm - 70mm
-
- 85mm OD ground to suit H6 hole
-
- Hardened and Ground 60-62 HRC
-
- Manufactured to DIN 179A and ISO 4247
Description
PP85 85mm Outside Diameter with Drill Size Range 64mm - 70mm
Large Plain Drill Bushes with a 85mm outside diameter and a bore range of 64mm to 70mm. Select the Inside diameter (drill size) required and choose one of the standard-length options from the drop-down menu. Boneham drill bushes are manufactured in accordance with BS1098 Pt.2 1977 / ISO 4247 / DIN 179A. The Boneham brand of bushes play close attention to accuracy with strict adherence to concentricity and tolerances. Large Plain Drill Bushes are also known as headless bushes. As a UK manufacturer or drill jig bushes, Boneham offer special bushes to customer specification and drawing.Why choose the PP85 Bush for your application?
The PP / PH range are precision ground on the ID and OD to press-fit into a H6 reamed hole. The inside diameter is ground to F7 limits for drills. The tolerance and concentricity of Boneham bushes also make them ideal for location and alignment bushes in many jig and tool applications. The standard OD size of 10mm has a bore range of 64mm to 70mm in mainly 1mm increments. Imperial bores sizes are available, sometimes in stock or to order.
