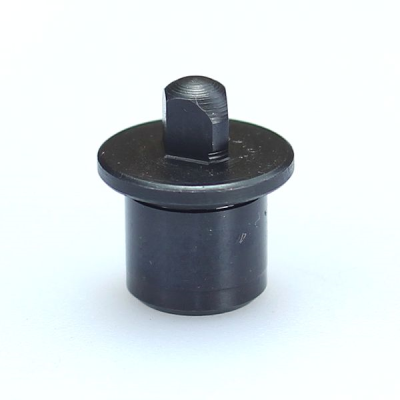

Diamond Bullet Nose Pins 1/4 to 1"

Code: BNP

Diamond Bullet Nose Pins 1/4 to 1"

What are Imperial Diamond Bullet Nose Pins

Diamond Bullet Nose Pins are also referred to as relieved pins. Bullet nose pins frequently used with a mating liner bush to create a precise alignment and locating system. Using diamond locating pins prevents binding of the work pieces. For simple installation the OD of the pin body and the liner are the same giving the option of one pass machining of both pates. The pins head and body are concentric to 0.0005 TIR.

Why choose Imperial Diamond Bullet Nose Pins for your application?

These are precise and accurate location pins with significant focus on maintaining accurate concentricity and tolerances across most dimensions. These relieved locations pins are must for repeat work where other cylindrical location pins are used to ensure rapid exchange of the work-piece. If all location pins are cylindrical and accurate then binding can occur as well as difficulty in locating quickly. The locating diamond pin ensures relief preventing binding.

Key Features

  • Precision Ground Locating System
  • Hardened
  • Black Oxide Finish
  • Concentric to .0005" TIR

  • Male Element of the Precision Ground Locating System
  • Hardened
  • Black Oxide Finish
  • Ground Concentric to .0005" TIR
  • Imperial & Metric Sizes

Material

Steel

Finish / Colour

Hardened, Black Oxide

Tailoring Options

Pin Diameter,  Stainless Steel & Special to Drawing

Manufacturing Standard

Boneham Standard

Metric or Imperial

Available in both Metric (BNDPM) & Imperial (BNP)

Standard Size Range

¼" to 1" Pin Dia

Parent Item Code

BNP

Included

Bullet Nose Pin (Liner Sold Separately)
