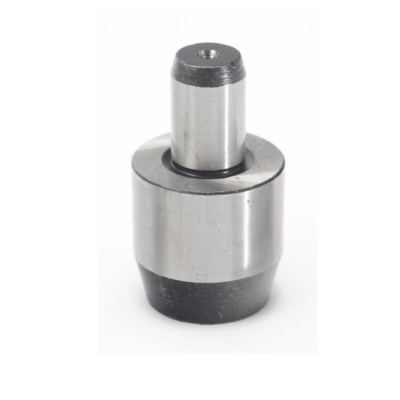

Cylindrical Locating Pin DIN 6321
Code: LPR
What are Cylindrical Locating Pins DIN 6321?
Cylindrical Locating Pins can also be known as Stepped Pins. Cylindrical or Stepped Location Pins are precision ground location pins (pin dia. N6 tolerance).
Manufactured in accordance with DIN 6321 these pins are used for the location of work pieces and fixture elements into toleranced holes.
Key Features
- Form B
- Precision ground
- Hardened tool steel
- Cylindrical head with lead / chamfer
- Precision ground
- Hardened tool steel
- G6 head limits
- N6 pin limits
- Cylindrical head with lead / chamfer
- Manufactured to DIN 6321 form B
| Material | Steel |
| Finish / Colour | Hardened Pin, Ground & Black Oxide |
| Tailoring Options | Stainless Steel & Special to Drawing |
| Manufacturing Standard | DIN 6321 Form B |
| Metric or Imperial | Metric |
| Standard Size Range | 6mm to 25mm |
| Parent Item Code | LPR |
| Included | Location Pin |
