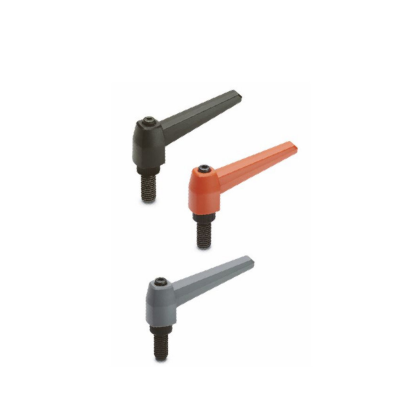

Adjustable Clamping Levers with Quick-Hex Screw M5 to M16
Code: ACLHS
Adjustable Clamping Levers with Quick-Hex Screw M5 to M16.
Particularly suitable when the lever turning angle is limited owing to lack of space. The adjustable handles can be quickly screwed during assembly by means of electric or pneumatic screwdrivers with controlled tightening torque system. For clamping, lift the lever to disengage the clamping device teeth and bring it back to start position.
By releasing the lever, the return spring automatically engages the teeth. If the lever cannot make a 360° rotation, the clamping element can be easily screwed by means of the hexagon socket front head screw (after having disengaged the lever). These adjustable clamping levers are available in black grey and orange.
Key Features
- Quick hex screw M5-M12
- Fibreglass reinforced polyamide based technopolymer
- Black, orange, or grey handles
- Quick hex screw M5-M12
- Fibreglass reinforced polyamide based technopolymer
- Black, orange, or grey handles
| Material | Technopolymer plastic fibreglass reinforced |
| Finish / Colour | Matt / Black |
| Tailoring Options | Colour |
| Manufacturing Standard | Boneham Standard |
| Metric or Imperial | Metric |
| Standard Size Range | M5 - M12 |
| Parent Item Code | ACLHS |
| Included | Adjustable Clamping Lever |
