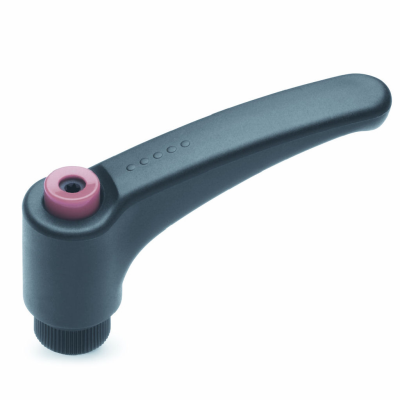

Adjustable Clamping Lever Quick Assembly Female
Code: ACLQAF
Adjustable Clamping Lever for Quick Assembly with M10 and M12 Female Threads.
M10 and M12 female threaded clamping levers with quick assembly adjustment and ergonomic handle design. Plastic push button with adjustable handle offering the possibility of quick initial screwing during assembly by means of electric or pneumatic screwdrivers with controlled tightening torque system.
For clamping, lift the lever to disengage the clamping device teeth and bring it back to start position. By releasing the lever, the return spring automatically engages the teeth. The slightly arched shape of the lever and the ergonomic terminal enlargement give the operator a comfortable and safe grip and make the design of the handle more elegant, while the thumb rests naturally on the push button.
Key Features
- Female M10 and M12
- Torque quick assembly
- Fibreglass reinforced technopolymer
- Female M10 and M12
- Torque quick assembly
- Fibreglass reinforced technopolymer
| Material | Technopolymer plastic fibreglass reinforced |
| Finish / Colour | Matt / Black |
| Tailoring Options | Colour |
| Manufacturing Standard | Boneham Standard |
| Metric or Imperial | Metric |
| Standard Size Range | M10-M12 |
| Parent Item Code | ACLQAF |
| Included | Adjustable Clamping Lever |
